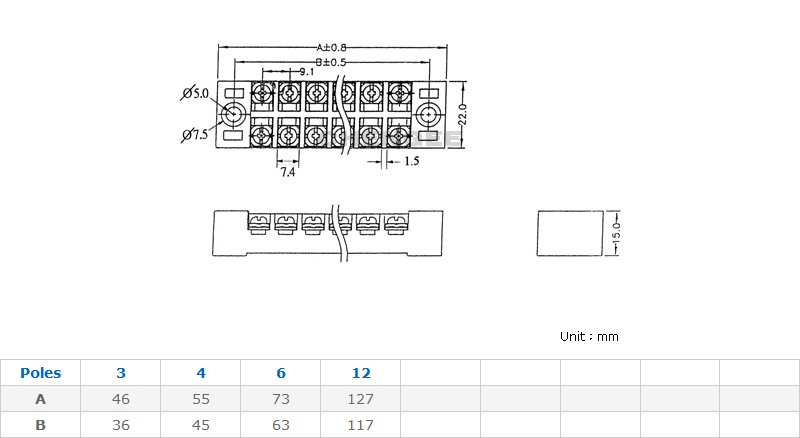

產品名稱: 15A 固定式端子台/端子盤
產品型號 Model Number: CB1-15A
產品型式 Product Type: 柵欄式雙排端子台
額定電功率 Electrical Rating: 15A, 600V
本體材質 Housing Material: PC, Black
端子規格 Terminal: Brass, Chromium Plated 0.8t
螺絲規格 Screw: 鐵鍍鎳 M3
工作溫度 Working Temperature: -40˚C to +105˚C
電極P數 Poles: 3P, 4P, 6P, 12P
Pitch (terminal to terminal): 9.1mm
