產品名稱: 25A 固定式端子台/端子盤
產品型號 Model Number: CB1-25A
產品型式 Product Type: 柵欄式雙排端子台
額定電功率 Electrical Rating: 25A, 600V
本體材質 Housing Material: PC, Black
端子規格 Terminal: Brass, Nickel Plated
螺絲規格 Screw: 鐵鍍三價鉻鋅 M4
工作溫度 Working Temperature: -40˚C to +105˚C
電極P數 Poles: 3P, 4P, 6P & 12P

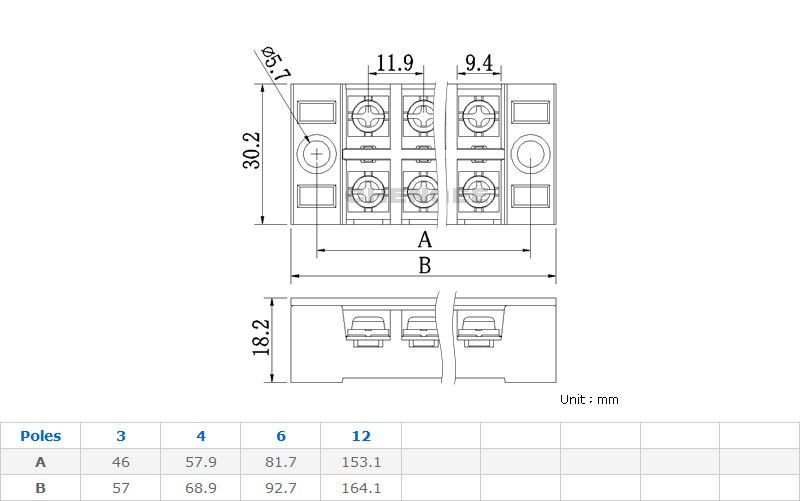

Pitch (terminal to terminal): 11.9mm
