首頁 » 產品展示 » PCB端子台 » 插拔式接線端子台 » CBP1-381 插拔式接線端子台 3.81mm pitch, 10A 300VAC

CBP1-381 插拔式接線端子台 3.81mm pitch, 10A 300VAC

插拔式接線端子台 CBP1-381 PCB端子台,10A 300VAC,使用線徑 26~16 AWG,腳距 3.81mm,極數 2P~16P,接線簡單明瞭,台灣生產製造。
  • CBP1-381

CBP1-381 插拔式接線端子台_PCB端子台 3.81mm pitch, 10A 300VAC

  1. Model Number: CBP1-381

  2. Rating: 10A 300VAC

  3. Body Material: Polyamide 66, Green

  4. Contact: Phosphor Bronze, 0.3t, Nickel Plated

  5. Screw: M2.0, Steel, Zine Plated

  6. Cage clamp: Brass, 0.7t, Nickel Plated

  7. Solder Pin: 0.8mm Brass, Tin Plated

  8. Working Temperature: -40˚C to +105˚C

  9. Insulation withstand Voltage: AC2000V/min

  10. Insulation resistance: 500MΩ or more at DC 500V

  11. Wire Range: 26~16 AWG

  12. Screw Torque Value: 3kg/cm

  13. Poles: 2P~16P

  14. Pitch: 3.81mm

  15. Place of Origin: Taiwan

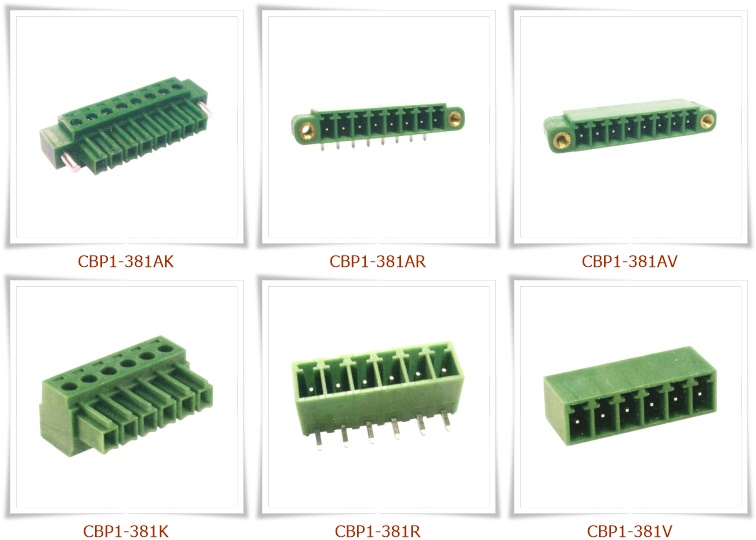

CBP1-381 插拔式接線端子台_PCB端子台
