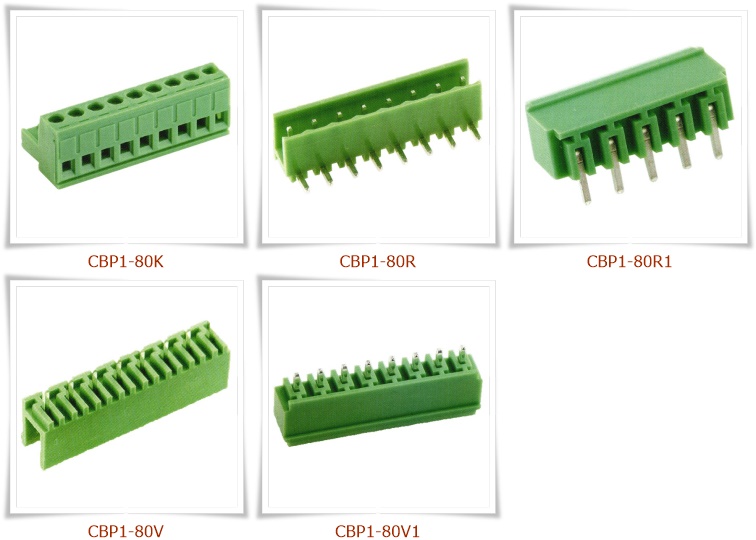

CBP1-80 插拔式接線端子台 5mm pitch, 10A 300VAC

CBP1-80 插拔式接線端子台，PCB端子台 5mm pitch, 10A 300VAC

1. Model Number: CBP1-80

2. Rating: 10A 300VAC

3. Body Material: Polyamide 66, Green

4. Contact: Phosphor Bronze, 0.4t, Nickel Plated

5. Screw: M2.6, Steel, Zinc Plated

6. Cage clamp: Brass, 0.7t, Nickel Plated

7. Solder Pin: Brass, Tin Plated

8. Working Temperature: -40˚C to +105˚C

9. Insulation withstand Voltage: AC2000V/min

10. Insulation resistance: 500MΩ or more at DC 500V

11. Wire Range: 24~14 AWG

12. Screw Torque Value: 5kg/cm

13. Number of Poles: 2P~16P

14. Pitch: 5mm

15. Place of Origin: Taiwan

CBP1-80.pdf
