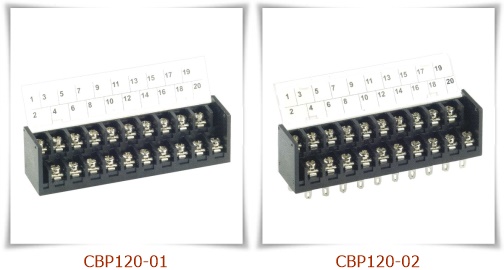

CBP120 雙層接線端子台 7.62mm pitch, 15A 300VAC

CBP120 雙層接線端子台，PCB端子台 7.62mm pitch, 15A 300VAC

1. Product Type: Barrier Strip

2. Model Number: CBP120

3. Rating: 15A 300VAC

4. Body Material: PBT, Black

5. Terminal: Brass, 0.8t, Tin Plated

6. Screw: Steel, M3, Nickel Plated

7. Working Temperature: -40˚C to +130˚C

8. Insulation withstand Voltage: AC2000V at 1 min

9. Insulation resistance: 500MΩ or more at DC 500V

10. Wire Range: 22~14 AWG

11. Max. Torque Value: 8Kg/cm

12. Number of Poles: 2x2P~2x30P

13. Pitch: 7.62mm

14. Cover Available

15. Place of Origin: Taiwan

CBP120.pdf
